The storage size is as compact as your palm.
It smoothly extends only when needed, supporting inspections and photography at height.
Ladders, drones… high-altitude work takes time and comes with risks. Isn’t there a better way?
Inspections and photography at height require ladders and heavy equipment, raising concerns about fall risks and costs. The BambooShoot Actuator takes care of all that hassle and worry.
Using a tape-measure-style mechanism, it delivers a lightweight, simple, and high-performance solution.
A smart robotic component that extends instantly, only when you need it.
This device folds down into a compact box roughly 20 cm in size. With a single switch, it extends smoothly up to 4 meters, allowing operators to reach equipment and switches located at elevated positions.
Compact Storage & Lightweight
Stored in a palm-sized case and weighing only about 3 kg, it’s light enough for easy carrying—even for women.
Extends up to 4 meters.
It enables switch operation and inspections at elevated locations without the need for ladders or cranes.
One unit covers multiple functions.

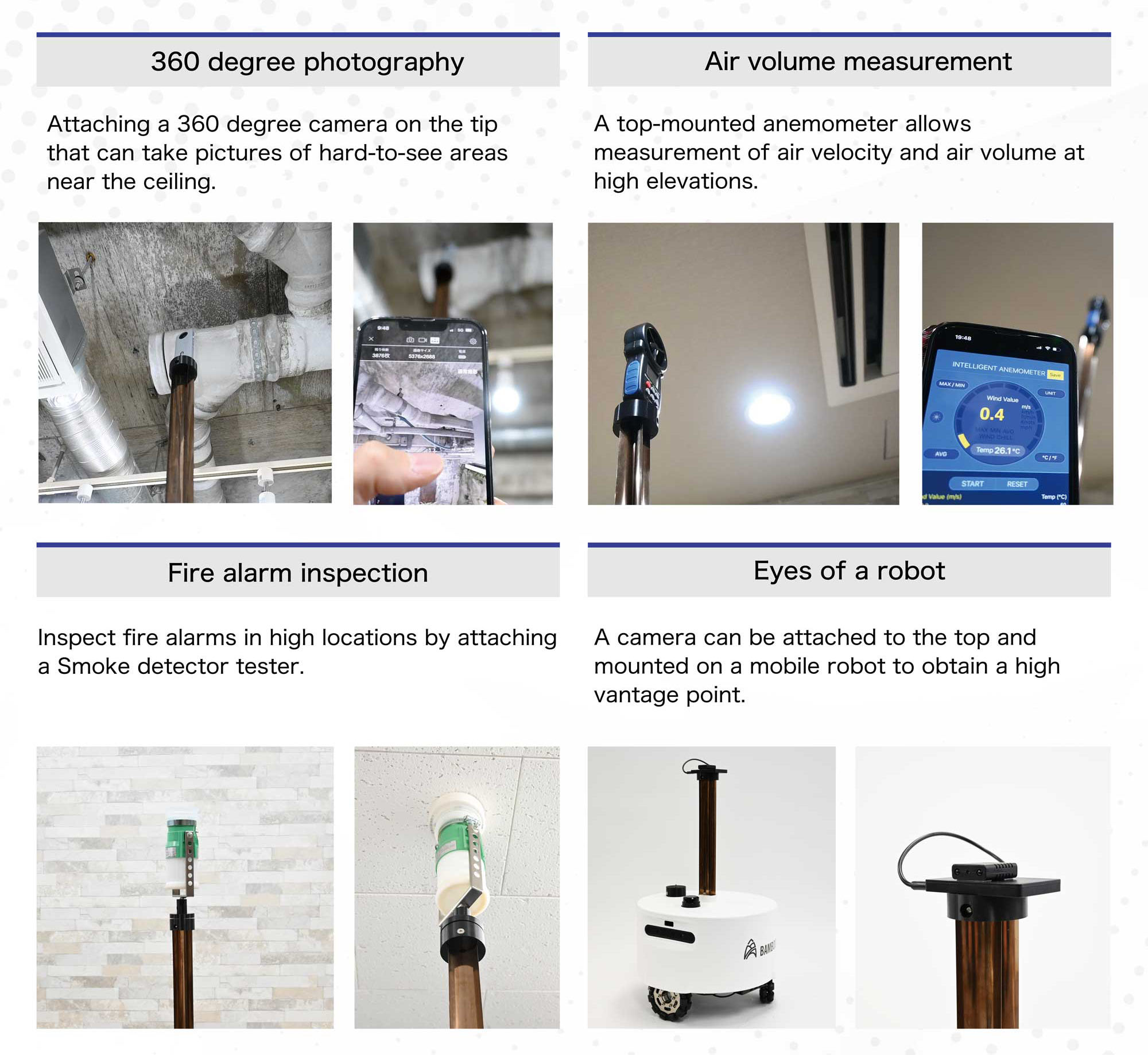

The actuator section can accommodate a variety of devices, enabling a single unit to perform multiple inspection tasks such as 360° imaging and fire alarm testing.
Use Cases
- As a robotic arm：Utilized as an arm for pressing building intercom buttons.
- A “Extendable / Retractable eye” for robots：Enables flexible vertical adjustment of a camera mounted on autonomous mobile robots and similar platforms.
- Facility inspections：Supports routine inspections of HVAC systems and fire alarms, contributing to manpower reduction.
- Drone alternative：Enables high-altitude imaging and measurement from the ground in environments where drones cannot be deployed.
- Office environment quantification：Measures HVAC parameters (airflow speed and volume), illuminance, and other data in three dimensions across multiple points within an office.
Reliability & Track Record
This mechanism was granted a patent on September 14, 2021.
Patent Number: JP Patent No. 6944227
Registration Date: September 14, 2021
Title of Invention: Protruding Linear Actuator, Robotic Arm, and Transport Robot
Patent Holder: RoboSapiens Inc.
Inventors: Shun Nagao, Shohei Takei
Press Release Article：https://prtimes.jp/main/html/rd/p/000000008.000089345.html
Experience the future of high-elevation work today.
Specifications
Specifications
| BambooshootActuator(Model：BSA50L45T03) | |
|---|---|
| Size | Main Unit：W207 × D121.5 × H202.1 (mm) Control Box：W110 × D150 × H90 (mm) |
| Weight | Main Unit：2.6kg Control Box：0.5kg D-sub15pin Cable(1.5m)：0.2kg |
| Tape Length | 4.5m |
| Maximum Extension Length | Approx. 4m（Vertical Direction）※1 |
| Maximum Payload at the Tip |
Varies depending on the extension length. |
| Extension/Retraction Speed | Approx. 45mm/s（Retraction）/ Approx. 55mm/s （Extension） |
| Input Voltage | 24V |
| Rated Current | 2.0A |
| Waterproof | × ※2 |
| Dustproof | × ※2 |
| 指示方法 | Serial Communication、ROS、Control Box |
※1 This may vary depending on the size and center of gravity of the payload, the extension length, and environmental factors such as wind or ground inclination.
※2 An optional bellows cover is available to provide waterproofing and dust protection for the extendable metal-tape section. Please contact us for further details.
